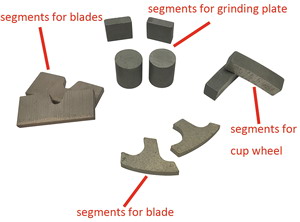

diamond segments

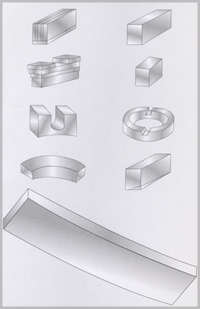

ART.NO.

SHARP

DESCRIPTION

YM01



NORMAL

YM02



NORMAL WITH BASE

YM03



CONICAL

YM04

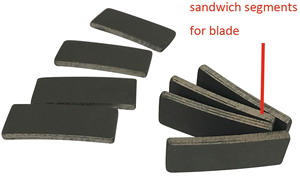

SANDWITH WITH BASE

YM05

REINFORCED NOSE TO IMPROVE SPEED

YM06

THREE LAYERS(FIVE, SEVEN AND NINE LAYERS ALSO)

YM07



YM98

YM08

U TYPE

YM09

CORE DRILL SEGMENT

YM10



CORE DRILL RING

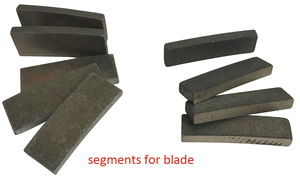

FOR BLADES

DIAMETER (MM)

SEGMENT LENGTH (MM)

SEGMENT THICKNESS (MM)

SEGMENT HEIGHT (MM)

SEGMENTS NUMBER

300

40

3.0

 8/10

20

350

40

3.2

 8/10

24

400

40

3.4

 8/10

28

450

40

4.0

 8/10

32

500

40

4.0

 8/10

36

600

40

4.2

 8/10

42

700

40

4.8

 8/10

50

800

40

6.0

 8/10

48

900

24

6.5

 10/12

64

100

24

7.5

 10/12

70

1200

24

8.0

 10/12

80

1500

24

9.0

 10/12

100

1600

24

9.0

 10/12

108

2000

24

10.0

20

128

3000

24

13.0

20

160

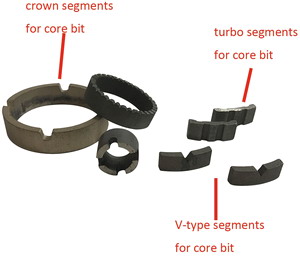

FOR CORE BITS (SEGMENTED)

DIAMETER (MM)

SEGMENT LENGTH (MM)

SEGMENT THICKNESS (MM)

SEGMENT HEIGHT (MM)

SEGMENTS NUMBER

25

17

3.0

 8/10

3

32

17

3.0

 8/10

3

38

17

3.0

 8/10

4

50

24

3.5

 8/10

5

63

24

3.5

 8/10

6

75

24

3.5

 8/10

7

89

24

3.5

 8/10

8

100

24

4.0

 8/10

9

115

24

4.0

 8/10

10

125

24

4.0

 8/10

10

150

24

4.0

 8/10

12

180

24

4.0

 8/10

14

200

24

4.5

 8/10

16

230

24

4.5

 8/10

18

250

24

4.5

 8/10

20

300

24

5.0

 8/10

22

350

24

5.0

 8/10

24



FOR CORE BITS (CROWN TYPE)

DIAMETER (MM)

SEGMENT LENGTH (MM)

SEGMENT THICKNESS (MM)

SEGMENT HEIGHT (MM)

SLOTS NUMBER

4

/

/

10

/

6

/

/

10

/

8

/

/

10

1

10

/

/

10

1

12

/

/

10

1

14

/

/

10

1

16

/

/

10

2

18

18

2.7

10

2

20

20

2.7

10

2

22

22

2.7

10

2

25

25

2.7

10

2

28

28

2.7

10

2

30

30

2.7

10

4

32

32

2.7

10

4

33

33

2.7

10

4

35

35

2.7

10

4

38

38

2.7

10

4

40

40

2.7

10

4

42

42

2.7

10

4

45

45

2.7

10

4

48

48

2.7

10

4

50

50

2.7

10

4

60

60

2.7

10

4
