Bi-metal hole
saws (regular size)
Bi-metal
M42 hole saw (big cutting depth)
HSS Hole Saws
HCS
hole saws
Carbide Tipped
Hole Saws Carbide
Gritted Hole Saws
Diamond
glass hole saw

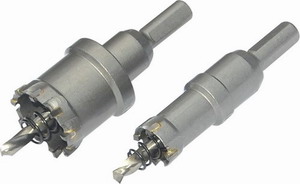

Carbide Tipped
(TCT)
Hole Saws-- H1 type
1.3-ply cutters reduces tip crack even with hard
use,amd the edge of knife adopts super quality alloy material,which
is applied to drilling in cold/hard metal or stainless steel plate;
2.The 25mm effective length enables this hole-saw to drill thick
steel plate as well as curved face material like thick-wall metal
pipes etc.
3.The abrasion reducing design heightens durability of hole-saw to
great degree,besides,with lighter and faster drilling compared with
previous flat-edge products.
|
Dia |
O.L |
Dia |
O.L |
|
15mm |
80mm |
38mm |
80mm |
|
16mm |
80mm |
40mm |
80mm |
|
18mm |
80mm |
42mm |
80mm |
|
19mm |
80mm |
45mm |
80mm |
|
20mm |
80mm |
50mm |
80mm |
|
21mm |
80mm |
53mm |
80mm |
|
22mm |
80mm |
60mm |
80mm |
|
23mm |
80mm |
65mm |
80mm |
|
25mm |
80mm |
70mm |
80mm |
|
26mm |
80mm |
75mm |
80mm |
|
28mm |
80mm |
80mm |
80mm |
|
30mm |
80mm |
85mm |
80mm |
|
32mm |
80mm |
90mm |
80mm |
|
35mm |
80mm |
95mm |
80mm |

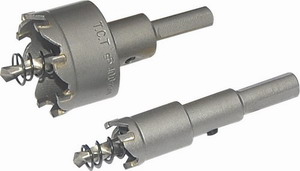

Carbide Tipped
(TCT)
Hole Saws-- H2 type
Can be applied to drilling in cold/hard metal
or stainless steel plate; the effective cutting length is 22mm.
|
Dia |
O.L |
Dia |
O.L |
|
15mm |
80mm |
38mm |
80mm |
|
16mm |
80mm |
40mm |
80mm |
|
18mm |
80mm |
42mm |
80mm |
|
19mm |
80mm |
45mm |
80mm |
|
20mm |
80mm |
50mm |
80mm |
|
21mm |
80mm |
53mm |
80mm |
|
22mm |
80mm |
60mm |
80mm |
|
23mm |
80mm |
65mm |
80mm |
|
25mm |
80mm |
70mm |
80mm |
|
26mm |
80mm |
75mm |
80mm |
|
28mm |
80mm |
80mm |
80mm |
|
30mm |
80mm |
85mm |
80mm |
|
32mm |
80mm |
90mm |
80mm |
|
35mm |
80mm |
95mm |
80mm |
Carbide Tipped
(TCT)
Hole Saws-- H3 type
Especially designed for drilling on stainless steel pipe & tube
and other wares or sheet with rough surface,
the effective cutting length is 12mm.
Maximum cutting capacity: 5mm thickness
stainless steel sheet.
|
Dia |
O.L |
Dia |
O.L |
|
15mm |
80mm |
38mm |
80mm |
|
16mm |
80mm |
40mm |
80mm |
|
18mm |
80mm |
42mm |
80mm |
|
19mm |
80mm |
45mm |
80mm |
|
20mm |
80mm |
50mm |
80mm |
|
21mm |
80mm |
53mm |
80mm |
|
22mm |
80mm |
60mm |
80mm |
|
23mm |
80mm |
65mm |
80mm |
|
25mm |
80mm |
70mm |
80mm |
|
26mm |
80mm |
75mm |
80mm |
|
28mm |
80mm |
80mm |
80mm |
|
30mm |
80mm |
85mm |
80mm |
|
32mm |
80mm |
90mm |
80mm |
|
35mm |
80mm |
95mm |
80mm |

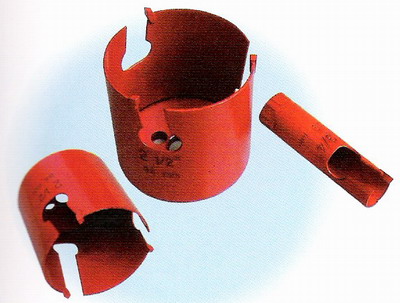

Woodworking Hole Saws with
Carbide Tips
|
Diameter |
Remark |
Diameter |
Remark |
|
19mm |
3/4" |
single tip |
68mm |
2-11/16" |
3 tips |
|
20mm |
25/32" |
single tip |
69mm |
- |
3 tips |
|
22mm |
7/8" |
single tip |
70mm |
2-3/4" |
3 tips |
|
25mm |
1" |
single tip |
71mm |
- |
3 tips |
|
27mm |
1-1/16" |
single tip |
73mm |
2-7/8" |
3 tips |
|
29mm |
1-1/8" |
single tip |
74mm |
- |
3 tips |
|
30mm |
1-3/16" |
single tip |
76mm |
3" |
4 tips |
|
32mm |
1-1/4" |
single tip |
79mm |
3-1/8" |
4 tips |
|
35mm |
1-3/8" |
single tip |
80mm |
- |
4 tips |
|
38mm |
1-1/2" |
2 tips |
83mm |
3-1/4" |
4 tips |
|
40mm |
1-9/16" |
2 tips |
88mm |
3-1/2" |
4 tips |
|
44mm |
1-3/4" |
2 tips |
92mm |
3-5/8" |
4 tips |
|
45mm |
- |
2 tips |
95mm |
3-3/4" |
4 tips |
|
48mm |
1-7/8" |
2 tips |
98mm |
3-7/8" |
4 tips |
|
50mm |
- |
3 tips |
102mm |
4" |
5 tips |
|
51mm |
2" |
3 tips |
105mm |
4-1/8" |
5 tips |
|
54mm |
2-1/8" |
3 tips |
108mm |
4-1/4" |
5 tips |
|
57mm |
2-1/4" |
3 tips |
111mm |
4-3/8" |
5 tips |
|
60mm |
2-3/8" |
3 tips |
114mm |
4-1/2" |
5 tips |
|
63mm |
- |
3 tips |
121mm |
4-3/4" |
6 tips |
|
64mm |
2-1/2" |
3 tips |
124mm |
- |
6 tips |
|
65mm |
2-9/16" |
3 tips |
127mm |
5" |
6 tips |
|
67mm |
2-5/8" |
3 tips |
|
|
|
|
